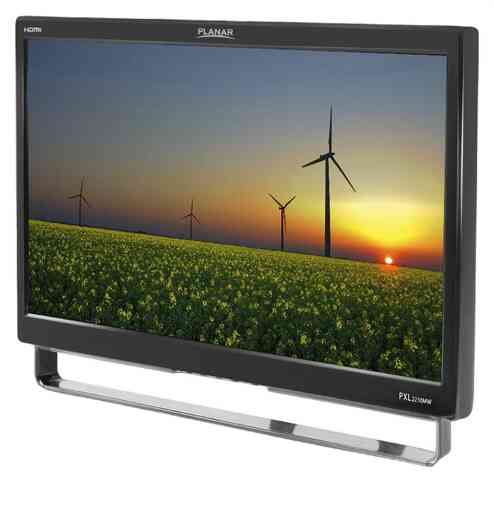

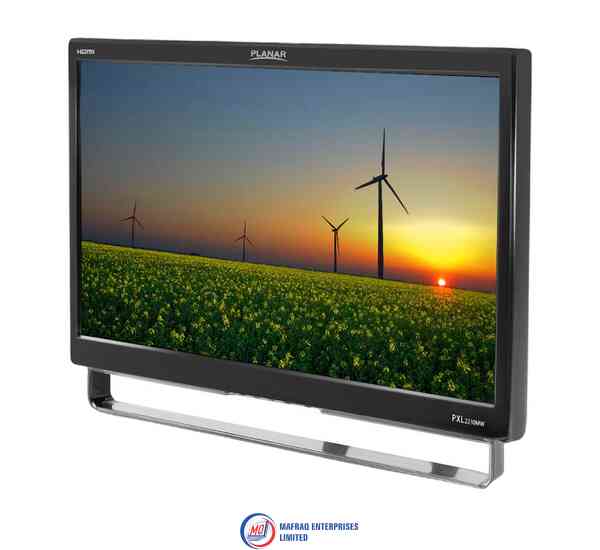

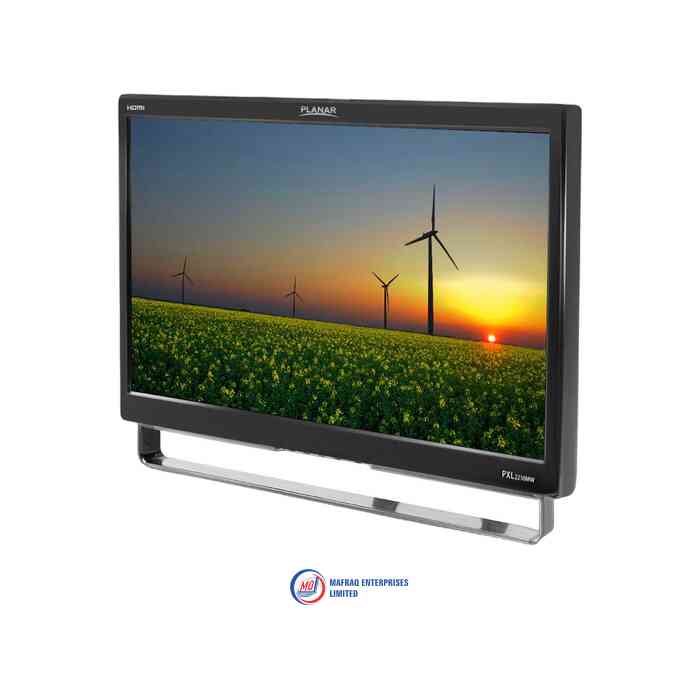

Planar PXL2230MW 22″ Touch Screen Monitor with HDMI, VGA & DVI

Planar PXL2230MW 22″ Touch Screen Monitor with HDMI, VGA & DVI

The Planar® PXL2230MW 22″, widescreen, Full HD LCD monitor is optimized for consumer multimedia, education, computer labs, and classroom applications. It features an optical dual-touch screen and a USB touchscreen interface. The edge-lit LED LCD monitor offers HDMI, DVI-D, and VGA video inputs and has integrated speakers. It also has blue light reduction presets to help lower eye fatigue.

SPECIFICATION DETAILS

Product Name: PXL2230MW
Viewable Size: 21.5″ diagonal (18.77″ horizontal x 10.56″ vertical)
Touchscreen Type: Optical
Number of Touch Points: 2
Touchscreen Interface USB
Contrast Ratio (typ): 1000:1
Viewing Angle (typ): 170° Horizontal and 160° Vertical
Response Time (typ): 5 ms
Brightness
(w/touchscreen): 200 cd/m²
Brightness (w/o
touchscreen): 250 cd/m²
Display Type: Edge-Lit LED LCD
Display Resolution: 1920 x 1080, full HD
Aspect Ratio: 16:9
Tilt Range: -0° to +20°
Palette: 16.7 million colors
Pixel Pitch: 0.248 mm
Panel Depth: 2.81″ (71.4 mm)
Dimensions (W x H x D): 20.3″ x 14.7″ x 4.9″ (516.3 mm x 373.4 mm x 123.3 mm)
Dimensions without Stand: 20.3″ x 12.9″ x 2.8″ (516.3 mm x 328.9 mm x 71.4 mm)
Display Weight: 9.9 lb (4.5 kg)
Display Weight (w/o stand): 8.9 lb (4.0 kg)
Shipping weight: 12.8 lb (5.8 kg)
Video Inputs: Analog and Digital (DVI-D w/HDCP, HDMI)
HDCP: Yes
Audio Output: 2 speakers, 1W/ch
Compatibility: Windows® 11, 10, 7
External Connections: D-sub 15-pin, DVI-D 24-pin (w/HDCP), HDMI, USB-B, Audio Port, AC Power-In
Power Supply Internal:
Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption (typ): 25W (<0.5W Standby, off)
Operating Temperature: 0 to 40°C
Humidity: 10 – 90% RH (non-condensing)
Mount Built-in: 100 mm VESA, Back of monitor
Recommended Usage: Up to 16 hours per day
Service and Support: 3-Year Customer First™ Warranty featuring FREE Advance Replacement (US
only). Please see the warranty document for more details and for the replacement
procedures outside the US.
Options / Features Multi-language On screen display (OSD), Kensington® Security Slot
Blue Light Reduction: Yes
Product Approvals UL/cUL, CE, FCC-B, RoHS
CI-Black-PN 997-7039-00
